APak Batteries has built numerous common batteries used in oceanographic research as well as custom designed batteries to meet specific needs.
We can provide design assistance needed for applications that have critical space restrictions. Thanks to our high quality standards and assembly, our batteries have proven performance in environments that are unforgiving and demand maximum dependability.
RD Inst. 14S2T-2
Alkaline cells
Benthos PN 866A
Wildlife Computers

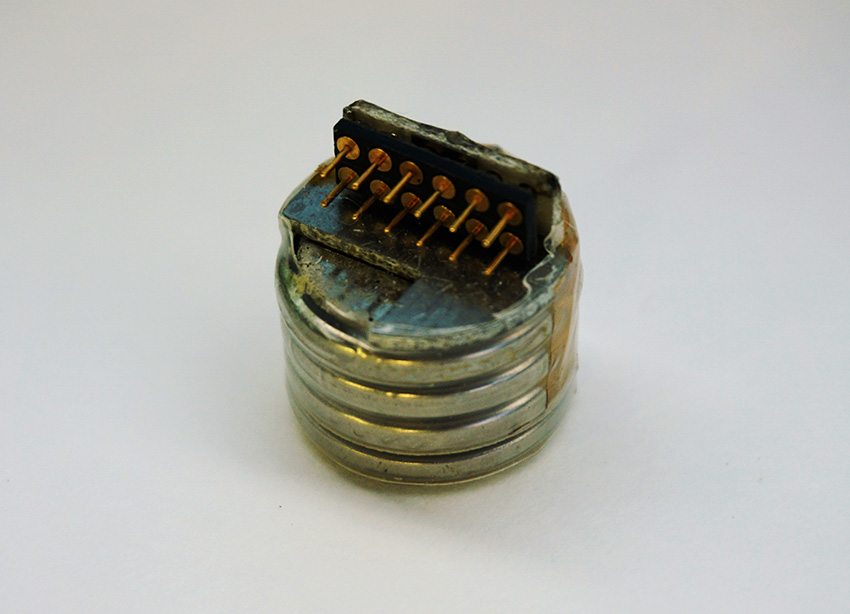

Coin Cell Battery
SST-100 Sequoia Scientific
RCM-9
Alkaline and Lithium
NiCAD AA cells
Built to order for APL
14S2T-4 Workhorse Battery
RD Instruments

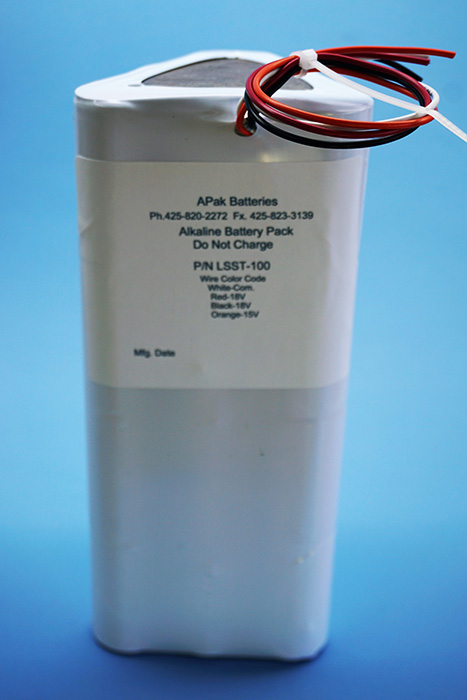

P/N: 6S4T – Triangular – 4 Outputs
+18Vdc, -18Vdc, +15Vdc @17,000mA (Nominal). Alkaline. 24 “D” cells. 3.75” height x 4.0” width x 9’5” length. 8 lbs. 4 outputs.
P/N: 6S3T - Circular - 2 Outputs Benthos replacement
15 Vdc @ 34,000mA (Nominal). Alkaline. 18 “D” cells. 7.2” height x 3.8” width. 5 lbs. Black wire – common. Red wire – 13.5dc. Orange wire: 13.5 Vdc.
P/N: 14S2T – Octagonal
42Vdc @ 17,000mA (Nominal). Alkaline. 28 “D” cells. 4.8” height x5.5” diameter. 8 lbs.
P/N: 12S3T – Hexagonal
18 Vdc @ 51,000 mA (Nominal)
P/N: 14S2T – Circular
42Vdc @ 17,000mA (Nominal). Alkaline. 28 “D” cells. 5.6” height x5.6” width x 4.7” length. 9 lbs. Replacement for RDI Instrument's Sentinel Workhorse ADCP Battery. Please specify two or four guide tubes.
P/N: 19S2T – Hexagonal
57Vdc @ 7800mA (Nominal). Alkaline. 38 “C” cells. 3.9” height x 5.1” weight x 4.5” length. 11 lbs.
